1. Copy Files to Station Directory
After downloading all the files, copy all files to an accessible station directory. E.g. Create a folder named SchedulingTemplate.
N4 Floor Plan/Occupancy Zone View
Floorplan images courtesy of US Engineering
Overview

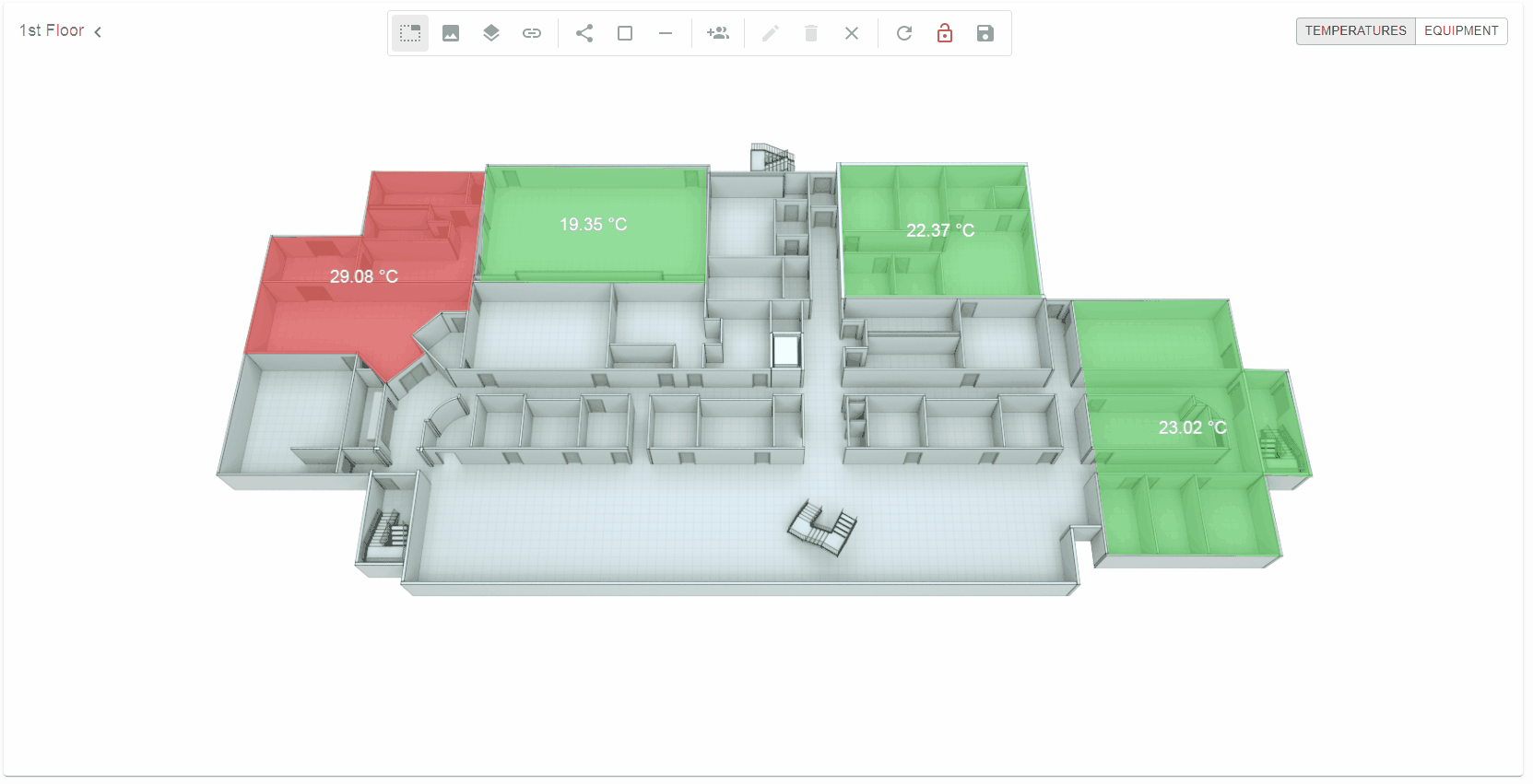

The Floor Plan Zoning Template allows you to add polygon shapes over your existing images and display point values. As an admin or super-user create polygons with ord references or link to other plans. When you log on as a non-admin user the image is displayed with clickable polygon areas. Set up to 3 different colors with values for min, optimal, and max. Shapes change colour in real-time. Add the occupancy icon which binds to a station boolean point to show if the area is occupied. Add upto 5 layers for showing different types of data e.g. occupancy, lighting, HVAC, etc. This template also includes Scheduling View, Energy View, PX View, Alarm View, N4 Alarms To Line Messenger, N4 Alarms To Slack and a Free Weather Service which can be used on any project. Also check out our widgets.
Features
Show Values
Display numeric, boolean, string, or enum values anywhere on screen. Values update in real-time.
Navigation
Navigate to other floor plans with the click of a button. 3d images and values load when navigating to other areas.
Occupancy & Layers
Show occupancy icon using any SVG in different areas by binding it to a boolean ord. Toggle between layers for ease-of-use
How to Use
2. Add Licensing Service
Templates must be licensed, but you manage your own licenses. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.
There are few ways to get a license file:
1. Add our licensing module to your station services.
This module automatically retrieves the license from our servers and saves it to your stations
shared folder directory.
2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.
Make sure the station user has access to WLicenseService in the user management and category service section.
Finally, in the service properties make sure the Enable Template Support option is set to true.
Verify you are always using the latest version of the licensing service. You can check and download the latest version from the Software Portal.
3. Setup other Views

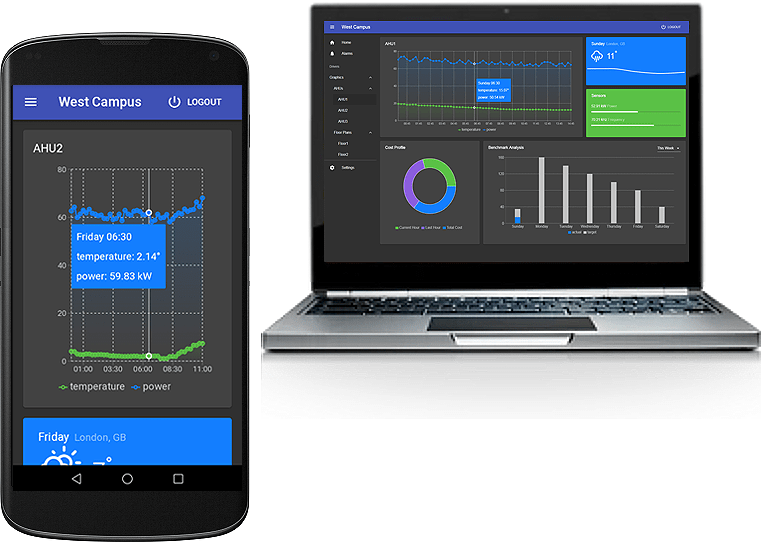

This template also includes Scheduling View, Energy View, PX View, Alarm View and a Free Weather Service which can be used on any project. Refer to each of the product pages above to set up other views.
4. Toolbox
When you log on as a super-user or admin, a toolbox is available to set up polygons, ords, etc. When logging on as a normal user, the toolbox does NOT show.
5. Set the Background Image
Click on the image icon to add background image. NOTE: The image must be in an accessible station folder.
NOTE: we offer a 2d to 3d image conversion service at a very small cost. Please Contact Us us for a quote.
6. Add Lines, Rectangles, or Polygons
Using the tools place lines, rectangles, or polygons in the areas required.
7. Edit Shape Properties
You can point to a value ord reference or to other plans as required.
Continue to create and edit shapes. When complete, click the Save icon to save the configuration. Save often. As an admin click on Lock Icon to preview the graphic.
8. Add Occupancy, Layers and SVG Graphics
Use the toolbox to add occupancy icons.
Object should be bound to a boolean. When the value changes to true, the color changes accordingly in real-time.
TIP: as the icon is bound to a boolean, you could also visualise an alarm or an open door.
Use ANY svg icon you wish. Just change the view setting to add your own SVG in the correct format.
You can also add layers to toggle between.
