Time Schedule Widget
- Drag n' Drop
- Shows Niagara Time Schedule
- Updates Niagara Schedule
- Configurable
- Works in Workbench, Modern Browser, and Mobile
The time schedule widget links to a niagara schedule component and highlights the times in a tabular format. Use the LEFT-mouse button to highlight the time cells. You can also hold the mouse button to select multiple cells. Use the RIGHT-mouse (OR single-tap on Mobile) button to clear cells. When complete, the Niagara schedule updates instantly. The widget has a number of configurable properties that can be used to modify look, feel, and functionality. Also check out the Scheduling Template
Are you looking for a cost effective way to manage and visualize data for all your customers? Why not have a look at View Builder?
Before you start. Download the modules from our portal (see your order confirmation, which also explains licensing). Copy the modules file to your modules directory. Restart BOTH station and Workbench.
1. Copy the timeScheduleWidget-ux.jar file to your modules directory.
2. Open the module from your palette file.

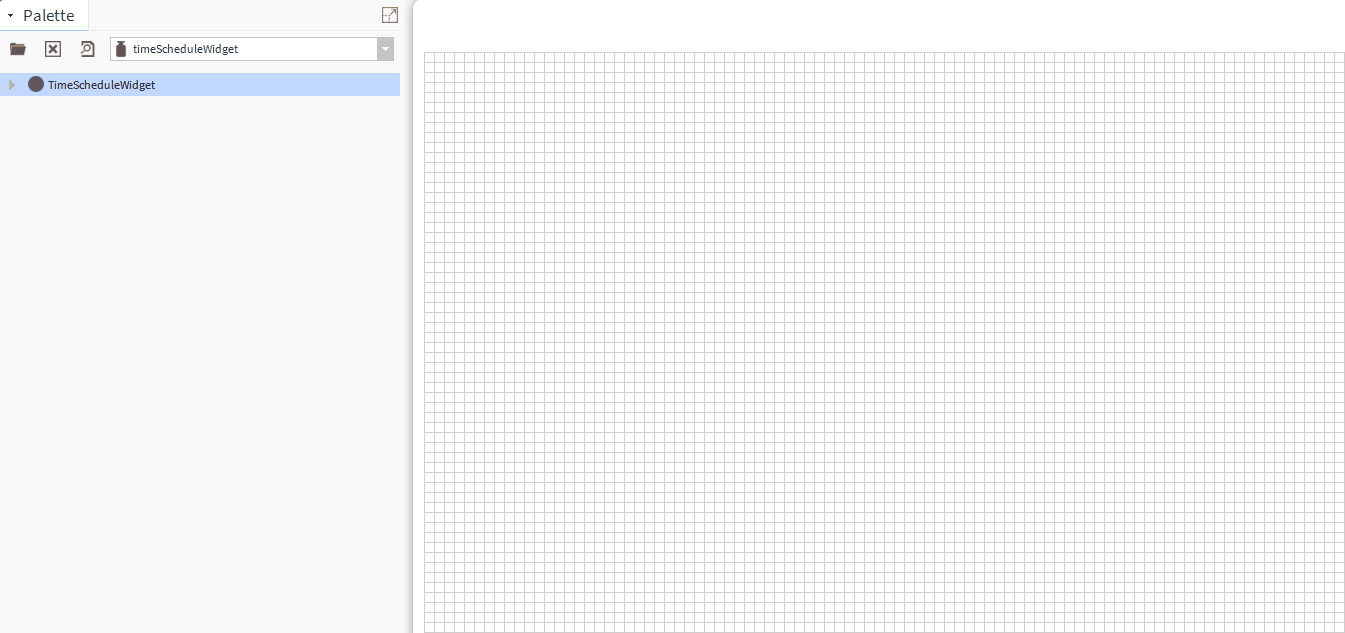

3. Drag and drop the widget from the palette onto your px view.

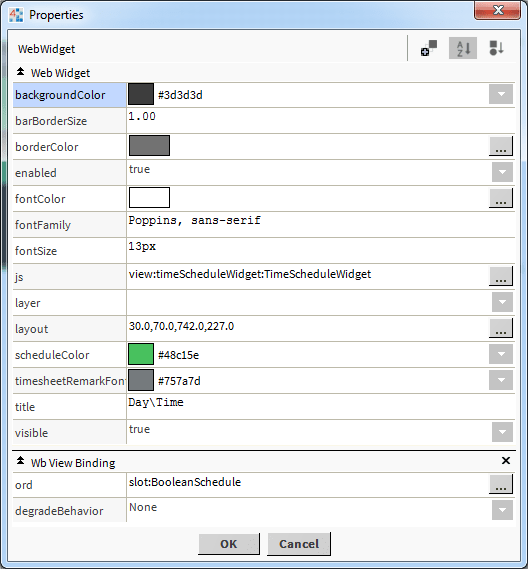

The widget has a few configurable properties that can be used to modify look, feel, and functionality. Change the properties as required:
Main Ord Binding
Link to a BooleanSchedule, NumericSchedule, or StringSchedule component.
Set this to an absolute ord, e.g.
station:|slot:/Drivers/NiagaraNetwork/BooleanSchedule or relativized ORD e.g.
slot:BooleanSchedule
The ord should point to a schedule.
You can now use the widget in your custom html page as long as the html file is in a appropriate station directory. E.g.:
C:/../station/shared/demo1.html
1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:
<script type="text/javascript">
var require = {
paths: {
"nmodule": "/module",
"baja": "/module/bajaScript/rc/plugin/baja",
"bajaScript": "/module/bajaScript/rc",
"bajaux": "/module/bajaux/rc",
"lex": "/module/js/rc/lex/lexplugin",
"css": "/module/js/com/tridium/js/ext/require/css",
"jquery": "/module/js/rc/jquery/jquery-2.1.1", // For N4.4 or higher use /module/js/rc/jquery/jquery-3.2.0.min
"Promise": "/module/js/rc/bluebird/bluebird",
// these are runtime dependencies
"hbs": "/module/js/rc/require-handlebars-plugin/hbs", // For N4.4 or higher use /module/js/rc/handlebars/handlebars.min-v4.0.6
"i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
"json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
"underscore": "/module/js/rc/underscore/underscore",
},
hbs: {
disableI18n: true
}
}
</script>
<script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
<script>
require(['jquery', '/module/timeScheduleWidget/rc/timeScheduleWidget.run.js'], function (jquery, app) {
app.initialiseTimeScheduleWidget({
backgroundColor: '#3D3D3D',
borderColor: '#727272',
borderThickness: 1,
divId: '#widget1',
fontColor: '#fff',
fontFamily: 'Poppins, sans-serif',
fontSize: '13px',
scheduleColor: '#48c15e',
timesheetRemarkFontColor: '#757a7d',
timeScheduleOrd: 'station:|slot:/Drivers/NiagaraNetwork/BooleanSchedule', // use absolute ord
title: 'Day\\Time',
});
});
</script>
</head>
<!--html to go here-->
<div id="widget1" style="width:300px;height:300px;"></div>
<!--Rest of your html below...-->
