Font Awesome Icon style buttons for your px pages. Drag and drop the icon widget from the palette onto your px view.
Are you looking for a cost effective way to manage and visualize data for all your customers? Why not have a look at View Builder?
Before you start. Download the modules from our portal (see your order confirmation, which also explains licensing). Copy the modules file to your modules directory. Restart BOTH station and Workbench.

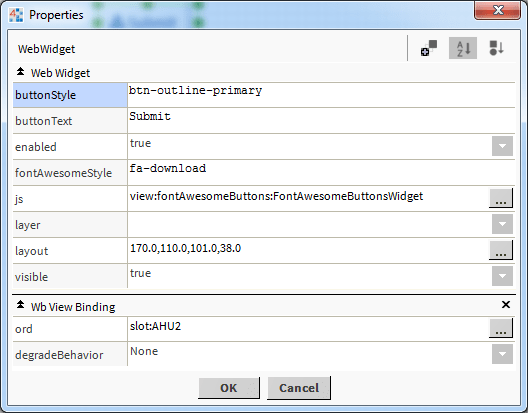

The widget has 2 main configurable properties that can be used to modify look, feel, and functionality. Change the properties as required:
Main Ord:
The Niagara object the button points to.
Set this to an absolute ord, e.g.
station:|slot:/Drivers/NiagaraNetwork/AHU5
OR
relativized ORD e.g.
slot:AHU5
Button Text:
The button text to show on the button. You can also enter html character codes. E.g. non-breaking space:
Button
The Niagara object the button points to.
Button Style:
Bootstrap V4 - the following values are acceptable: btn-primary, btn-secondary, btn-success, btn-info, btn-warning, btn-danger, btn-link, btn-outline-primary, btn-outline-secondary, btn-outline-success, btn-outline-info, btn-outline-warning, btn-outline-danger.
Button Width:
Add a non-breaking space to either side by using
Button Examples:
Font Awesome:
Set the fontAwesomeStyleProperty. Uses version font awesome library version 4.7.0. Font Awesome Icons Homepage
Note: the buttons have a transparent canvas background in browser mode.
You can now use the widget in your custom html page as long as the html file is in a appropriate station directory. E.g.:
C:/../station/shared/demo1.html
1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:
<script type="text/javascript">
var require = {
paths: {
"nmodule": "/module",
"baja": "/module/bajaScript/rc/plugin/baja",
"bajaScript": "/module/bajaScript/rc",
"bajaux": "/module/bajaux/rc",
"lex": "/module/js/rc/lex/lexplugin",
"css": "/module/js/com/tridium/js/ext/require/css",
"jquery": "/module/js/rc/jquery/jquery-2.1.1", // For N4.4 or higher use /module/js/rc/jquery/jquery-3.2.0.min
"Promise": "/module/js/rc/bluebird/bluebird",
// these are runtime dependencies
"hbs": "/module/js/rc/require-handlebars-plugin/hbs",
"i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
"json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
"underscore": "/module/js/rc/underscore/underscore",
},
hbs: {
disableI18n: true
}
}
</script>
<script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
<script>
require(['/module/fontAwesomeButtons/rc/fontAwesomeButtons.run.js'], function (app) {
app.initialiseFontAwesomeButton({
ord: '/ord?station:%7Cslot:/Services/AlarmService/ConsoleRecipient', // should use hyperlink syntax
buttonStyle: 'btn-outline-primary',
buttonText: 'Submit',
fontAwesomeStyle: 'fa-download',
divId: '#widget1'
});
});
</script>
</head>
<!--html to go here-->
<div id="widget1" style="width:300px;height:300px;"></div>
<!--Rest of your html below...-->
