Niagara Bootstrap Buttons (FREE)


  • Drag n' Drop
  • Binds to ORD value
  • Renders in all major browsers
  • Bootstrap V4 styling
  • Multiple styles
Add to Cart

Overview

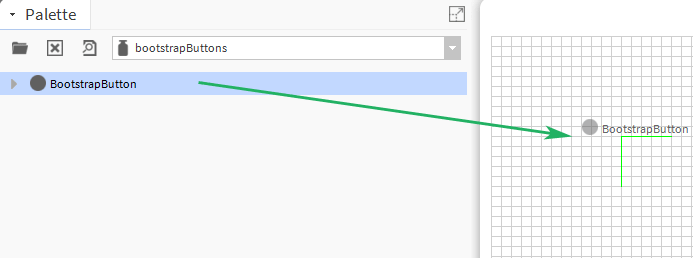

Bootstrap style buttons for your px pages. Drag and drop the icon widget from the palette onto your px view.

Are you looking for a cost effective way to manage and visualize data for all your customers? Why not have a look at View Builder?

Usage


Before you start. Download the modules from our portal (see your order confirmation, which also explains licensing). Copy the modules file to your modules directory. Restart BOTH station and Workbench.

Tridium Desktop/Mobile Menu


Properties

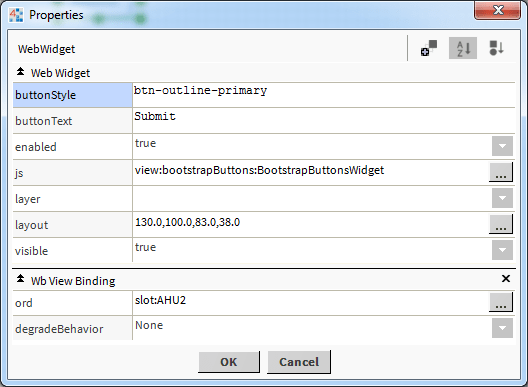

Widget Properties

The widget has a number of configurable properties that can be used to modify look, feel, and functionality. Change the properties as required:

Main Ord:

The Niagara object the button points to.

Set this to an absolute ord, e.g.
station:|slot:/Drivers/NiagaraNetwork/AHU5
OR
relativized ORD e.g. slot:AHU5

Button Text:

The button text to show on the button. You can also enter html character codes. E.g. non-breaking space:

 Button

Button Style:

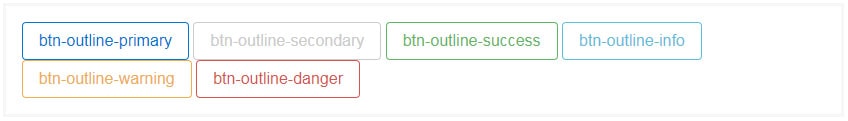

Bootstrap V4 - the following values are acceptable: btn-primary, btn-secondary, btn-success, btn-info, btn-warning, btn-danger, btn-link, btn-outline-primary, btn-outline-secondary, btn-outline-success, btn-outline-info, btn-outline-warning, btn-outline-danger.

Button Width:

Add a non-breaking space to either side by using

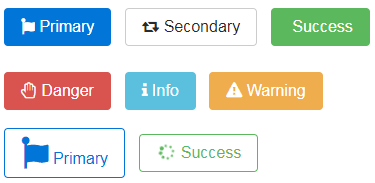

Button Examples:



Note: the buttons have a transparent canvas background in browser mode.

Also check out the font awesome buttons.




Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory. E.g.:
C:/../station/shared/demo1.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:


        <script type="text/javascript">

            var require = {
                paths: {
                    "nmodule": "/module",
                    "baja": "/module/bajaScript/rc/plugin/baja",
                    "bajaScript": "/module/bajaScript/rc",
                    "bajaux": "/module/bajaux/rc",
                    "lex": "/module/js/rc/lex/lexplugin",
                    "css": "/module/js/com/tridium/js/ext/require/css",

                    "jquery": "/module/js/rc/jquery/jquery-2.1.1",
                    "Promise": "/module/js/rc/bluebird/bluebird",

                    // these are runtime dependencies
                    "hbs": "/module/js/rc/require-handlebars-plugin/hbs",
                    "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
                    "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
                    "underscore": "/module/js/rc/underscore/underscore",
                },

                hbs: {
                    disableI18n: true
                }
            }
        </script>
        <script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
        <script>
            require(['/module/bootstrapButtons/rc/bootstrapButtons.run.js'], function (app) {

                app.initialiseBootstrapButton({
                    ord: '/ord?station:%7Cslot:/Services/AlarmService/ConsoleRecipient', // should use hyperlink syntax
                    buttonStyle: 'btn-outline-primary',
                    buttonText: 'Alarm Console',
                    divId: '#widget1'
                });
            });
        </script>
        </head>
        <!--html to go here-->
        <div id="widget1" style="width:300px;height:300px;"></div>
        <!--Rest of your html below...-->
